High performance battery management and power solutions

Lincad’s range of heavy-duty rugged military chargers has been designed to meet a variety of battery management needs and power solutions
Our chargers have predominantly been used within the military/defence sector but in more recent years we have developed chargers for commercial applications. Lincad’s chargers and conditioners can be used with any battery type ranging from 3-58V, regardless of battery manufacturer.

The Fleet 2812 is a compact, lightweight 28V DC, 1200 W power supply designed to run from universal AC mains. Rugged and versatile, it satisfies front line military operating requirements for equipment requiring a 28V DC input.

Originally designed for the BPMS Mk2 which has its own internal charger, the Fleet 2812 does not have the current control for charging a battery directly.

  • Part No.: 404292-2001
  • NSN: 6130-99-845-7772
  • Battery Chemistry: Not chemistry specific
  • Dimensions: 103mm × 183mm × 407mm

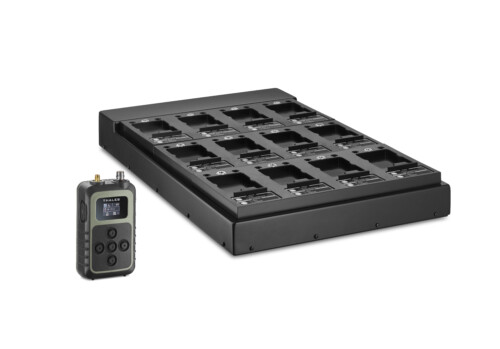

The SquadNet Charger is a 12-channel charger designed specifically for Thales’ SquadNet radio batteries. The batteries lock into the charger using the same mechanism as they lock onto the radios. Charging is fully automatic, with LED indicators providing state of charge information.

Whilst the SquadNet battery can be charged on the radio via USB, the SquadNet Charger allows charging of multiple batteries separately from the radio. This eliminates radio downtime during the battery charging process.

The Caravel Mk2 is Lincad’s first multi-chemistry charger and incorporates the very latest in battery charger technology and design. It offers charging of lithium-ion (Li-ion) and other battery types from any original equipment manufacturer via battery interface adaptors (BIAs).

It features a transport mode to prepare Li-ion batteries to less than 30% state of charge for air transport in line with IATA regulations, and a storage mode to prepare Li-ion batteries to 50% state of charge for long-term storage. It also includes twin USB ports for charging mobile devices.

  • Part No.: 404211-2001
  • NSN: 6130-99-843-6297
  • Battery Chemistry: Not chemistry specific
  • Dimensions: 172mm × 345mm × 210mm

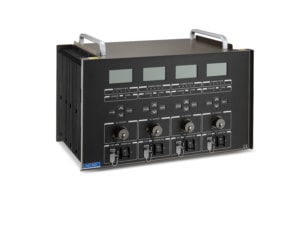

The Four Channel Caravel Mk2 maintains the full functionality of the Caravel Mk2 whilst allowing charging and discharging of up to four batteries at once.

Each channel works completely independently to allow the efficient management of a mixed battery fleet. The Four Channel Caravel Mk2 offers faster charging and discharging compared to the Armada charger/conditioner.

  • Part No.: 404256-2001
  • NSN: 6130-99-687-6039
  • Battery Chemistry: Multi-chemistry
  • Dimensions: 369mm × 545mm × 350mm

The Armada is a six-channel multi-chemistry charger/conditioner designed for the state of charge management of lithium-ion (Li-ion) and other battery types from any original equipment manufacturer. It is an efficient fleet management tool for anyone involved in the transport and storage of batteries.

Designed for absolute simplicity of operation, each channel features a transport mode to prepare Li-ion batteries to less than 30% state of charge for air transport in line with IATA regulations, and a storage mode to prepare Li-ion batteries to 50% state of charge for long-term storage. State of charge information for each channel is provided by an LED indicator display.

  • Part No.: 404255-2001-2
  • NSN: 6130-99-845-5999
  • Battery Chemistry: Not chemistry specific
  • Dimensions: 186mm × 445mm × 355mm

The Caravel is Lincad’s longest in-service charger, being developed for the first LIPS batteries in 2000, and is compatible with Lincad’s current range of LIPS products.

Whilst the Caravel remains in service, the Caravel Mk2 is recommended for users who wish to maintain a greater range of battery products.

  • Part No.: 40463
  • NSN: 6130-99-660-3297
  • Battery Chemistry: Not chemistry specific
  • Dimensions: 235mm × 320mm × 183mm

The LIPS DC Vehicle Charger charges up to three LIPS 5, LIPS 10, LIPS 11, LIPS 12 or LIPS 15 batteries simultaneously from a DC output socket on a vehicle. It can be mounted into vehicles using a dedicated mounting bracket.

LIPS batteries simply click into place and charging is initiated through a toggle switch.  The charger provides flexibility when no AC source is available, allowing charging in a moving or stationary vehicle.

  • Part No.: 404122-2001-2
  • NSN: 6130-99-254-3742
  • Battery Chemistry: Lithium ion
  • Dimensions: 203mm × 290mm × 510mm

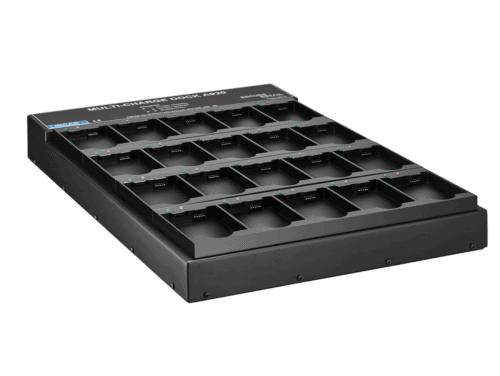

The Point of Sale (PoS) Multi-Dock Charger is a 20-channel charger for the batteries that power industry-leading PAX A920 and PAX A920 PRO PoS terminals used for mobile payments.

PoS terminals are used across the world in the hospitality, retail, transport, and delivery sectors. Whilst PAX A920 and PAX A920 PRO batteries can be charged on the PoS terminals, the PoS Multi-Dock Charger allows charging of multiple batteries separately from the device. This eliminates PoS terminal downtime during the battery charging process, improving the efficiency of mobile payment operations.

  • Part No.: 404296-2001, 404340-2001 (PRO)
  • Dimensions: 66mm × 348mm × 538mm

The Harvester is Lincad’s flexible solution to mobile power management for any situation where reliability, low weight and ease of use are critical. Harvesting energy from any DC input such as solar panels, a vehicle or batteries, it allows the charging of LIPS and other battery types.

When access to conventional charging methods is unavailable, the Harvester provides an alternative option for maintaining urgent power requirements. It also includes a USB port for charging mobile devices.

  • Part No.: 404217-2001
  • Battery Chemistry: Not chemistry specific
  • Dimensions: 67mm × 75mm × 0mm

The Solar Charger charges a single LIPS 5, 10, 11, 12 or 15 battery using the DC input from solar panels.

Providing flexibility in the field when no AC or other DC source is available, it can offer reduced charge times with a charge current of up to 10A.

  • Part No.: 404203-2001
  • Battery Chemistry: Not chemistry specific

The Vortex Charger is a five-channel charger designed specifically for charging up to five Vortex twist-lock batteries.

The charger is designed for ease of use with battery charging automatically initiated on connection of a battery to any channel with no user input required. State of charge information for each channel is provided by an LED indicator display.

  • Part No.: 404186-2001
  • NSN: 6130-99-153-0325
  • Battery Chemistry: Lithium ion
  • Dimensions: 250mm × 359mm × 291mm

The Soundranger Charger is a two-channel charger designed specifically for charging up to two Soundranger lead-acid batteries.

The charger contains integrated charging cables. Charge current is shown on an LCD display and charge completion is indicated via LEDs.

  • Part No.: 404252-2002
  • Battery Chemistry: Lead Acid
  • Dimensions: 236mm × 315mm × 386mm
