LIPS 14
The LIPS 14 is Lincad’s most energy dense product to date at 160 Wh/kg in a fully ruggedised form. Weighing just 620 g with a volume of only 0.36 L, it uses SMBus for lightweight communication.
| Voltage | 12 V (Nom) | NSN | 6140-99-153-5325 |
| Capacity | 9 Ah | Capacity Gauge | 3 LED |
| Energy Density | 160 Wh/kg | Battery Comms | SMBus |
| Weight | 620 G | Dimensions | 105x40x86 mm |

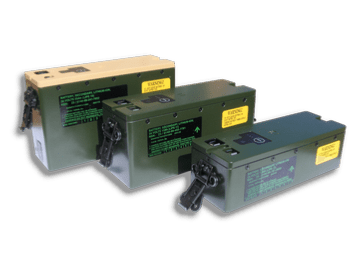

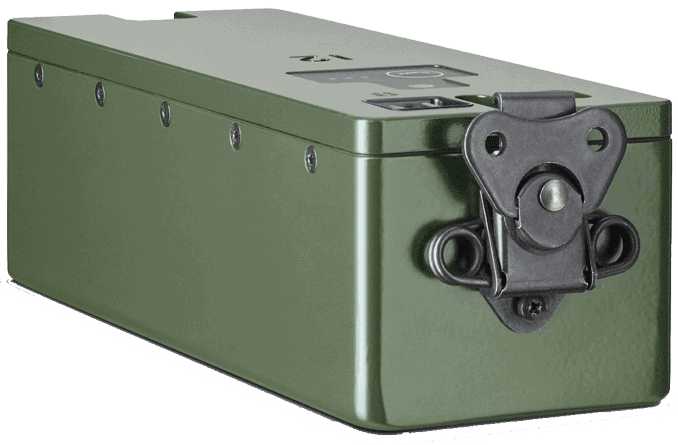

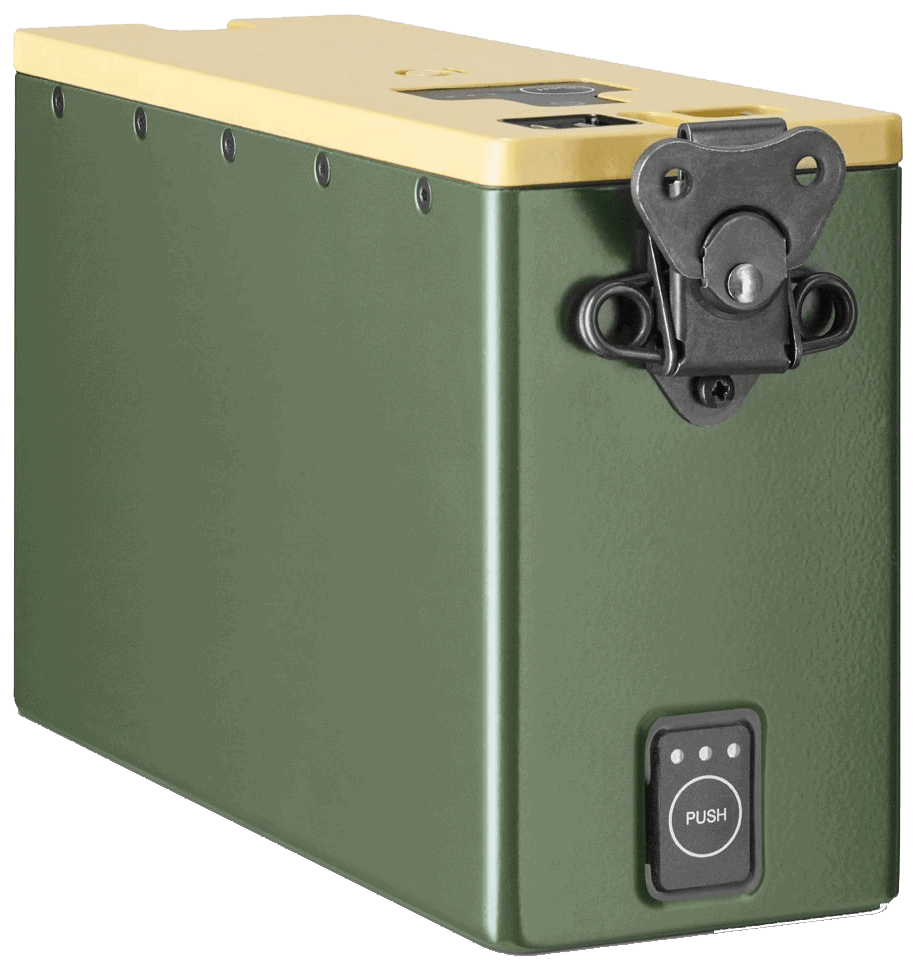

LIPS 10, 11 and 12
The LIPS 10, 11 and 12 batteries provide flexibility with different capacity options dependent on size and weight. The LIPS 11 and LIPS 12 represent two thirds and one third equivalents of the LIPS 10. They use IrDA communication with a press-to-test three LED capacity display.
| Voltage | 24 V (Nom) | NSN (LIPS10/LIPS11/LIPS12) | 6140-99-241-7002/6140-99-455-7791/6140-99-151-5636 |
| Capacity | 23, 15, 7.5 Ah | Capacity Gauge | 3 LED |
| Energy Density | 158- 123 Wh/kg | Battery Comms | IrDA Optical |
| Weight | 3.75, 2.5, 1.5 kg | Dimensions | optional |
LIPS 9
The LIPS 9 comes in two variants with the press-to-test five LED capacity display being located on either the front face or the side of the battery. It uses IrDA communication.
| Voltage | 24 V (Nom) | NSN | 6140-99-250-1820 |
| Capacity | 19 Ah | Capacity Gauge | 5 LED |
| Energy Density | 127 Wh/kg | Battery Comms | IrDA Optical |
| Weight | 3.6 Kg | Dimensions | 183x73x75 mm |
LIPS 5
The LIPS 5 is one of Lincad’s most successful products with tens of thousands of batteries supplied to the UK MOD as well as other customers worldwide. It uses IrDA communication with a press-to-test three LED capacity display.
| Voltage | 24 V (Nom) | NSN | 6140-99-666-4828 |
| Capacity | 19 Ah | Capacity Gauge | 3 LED |
| Energy Density | 127 Wh/kg | Battery Comms | IrDA Optical |
| Weight | 3.6 Kg | Dimensions | 212x76x128 mm |

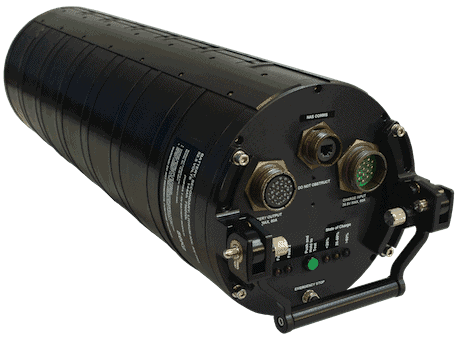

Submersible AIV battery
This battery has been developed for a submersible autonomous inspection vehicle (AIV) used in the petrochemical industry. It incorporates an integrated hard drive for data logging.
| Voltage | 52.5V (Nom) | NSN | N/A |
| Capacity | 144 Ah | Capacity Gauge | 3 LED |
| Energy Density | 151 Wh/kg | Battery Comms | Wired Serial |
| Weight | 50 Kg | Dimensions | D 238, L 791 mm |

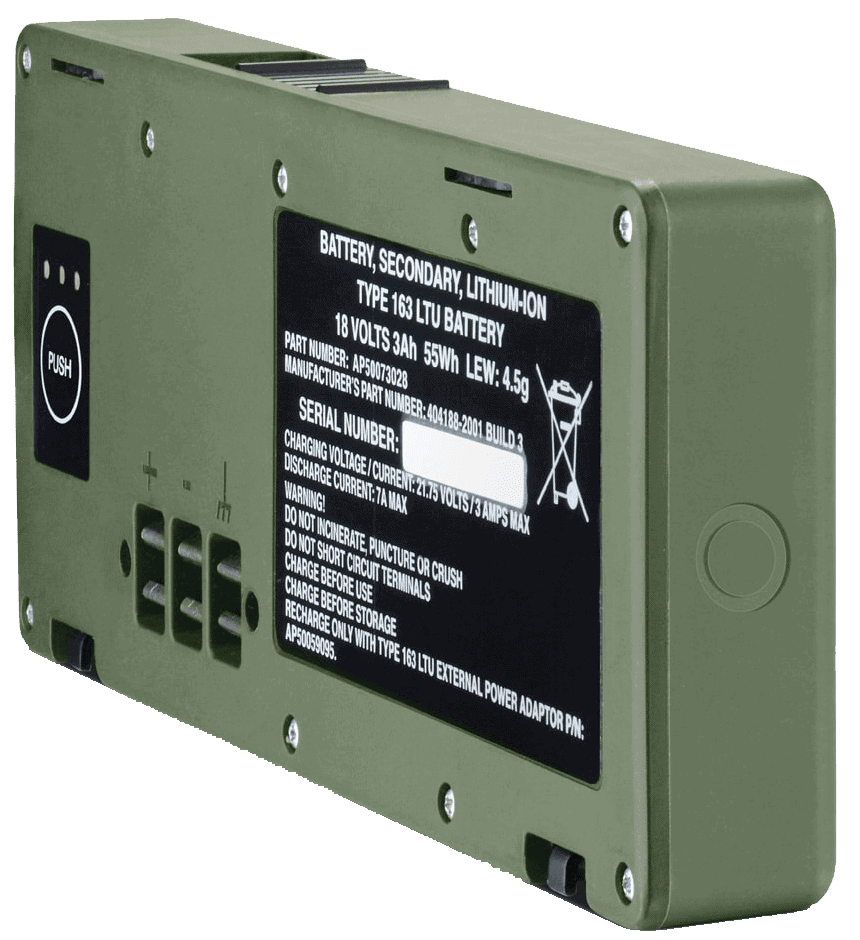

18 V battery
Lincad’s 18 V battery is a small, lightweight battery pack with a capacity of 3 Ah and a press-to-test three LED capacity display. It has been used to power a Laser Target Designator (LTD).
| Voltage | 18 V (Nom) | NSN | N/a |
| Capacity | 9 Ah | Capacity Gauge | 3 LED |
| Energy Density | 160 Wh/kg | Battery Comms | No |
| Weight | 397 G | Dimensions | 173x73x23 mm |

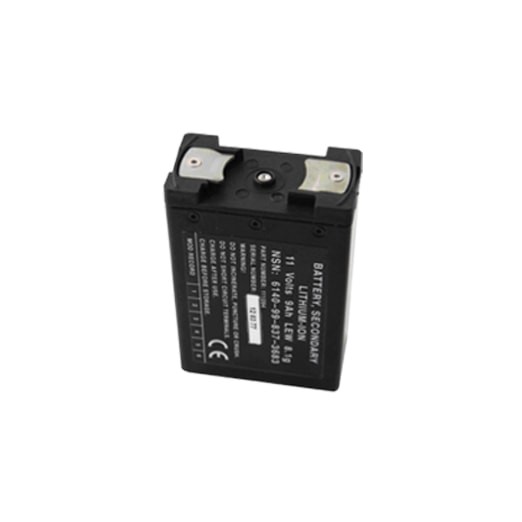

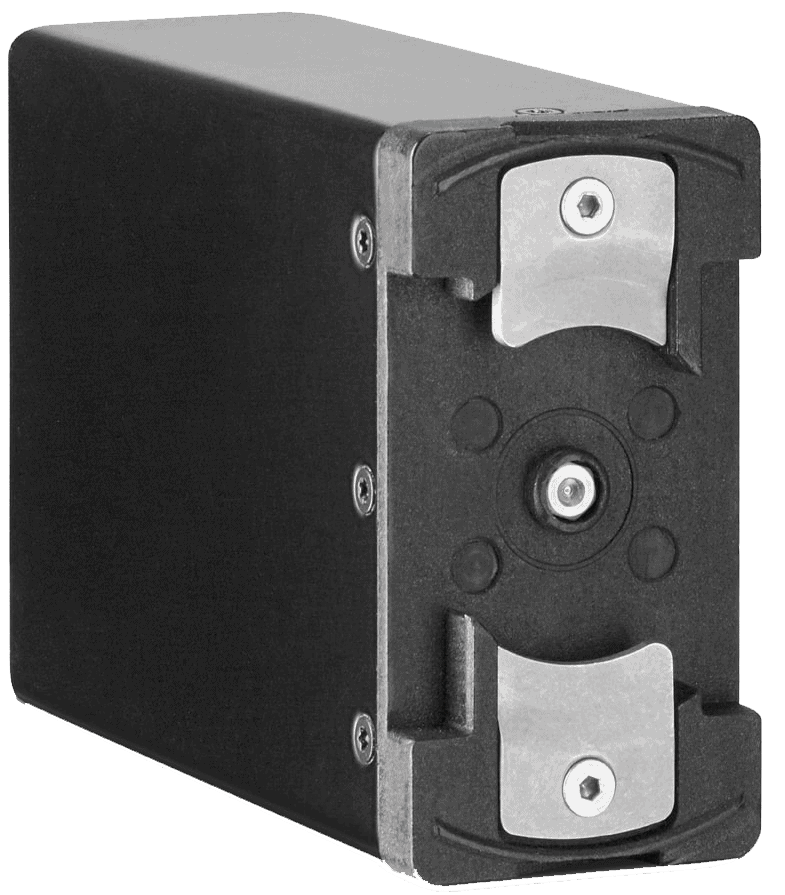

11 V battery
Lincad’s 11 V battery is a small, lightweight battery pack with a capacity of 9 Ah and a twist-lock mechanism for attaching to host equipment. It is available with or without battery communications and press-to-test LED capacity display. It has been used to power personal electronic countermeasures (ECM) equipment.
| Voltage | 11.4 V (Nom) | NSN | 6140-99-837-3683 |
| Capacity | 9 Ah | Capacity Gauge | Optional |
| Energy Density | 165 Wh/kg | Battery Comms | Optional |
| Weight | 600 G | Dimensions | 75x40x111 mm |
Sealed lead-acid battery
Lincad’s sealed lead-acid batteries are ideal for some fixed placement systems, offering a good depth of discharge and coping with heavy loads and wide operational temperature ranges.
| Voltage | 12 V (Nom) | NSN | 6140-99-052-0555 |
| Capacity | 70 Ah | Capacity Gauge | Please Enquire |
| Energy Density | 30 Wh/kg | Battery Comms | Please Enquire |
| Weight | 28 Kg | Dimensions | Please Enquire |

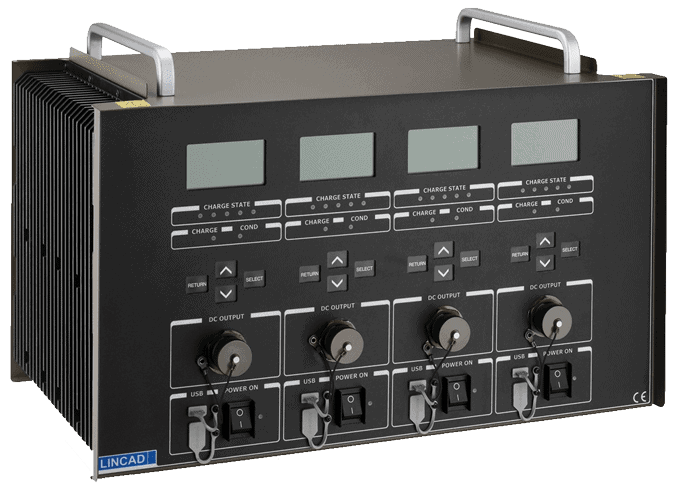

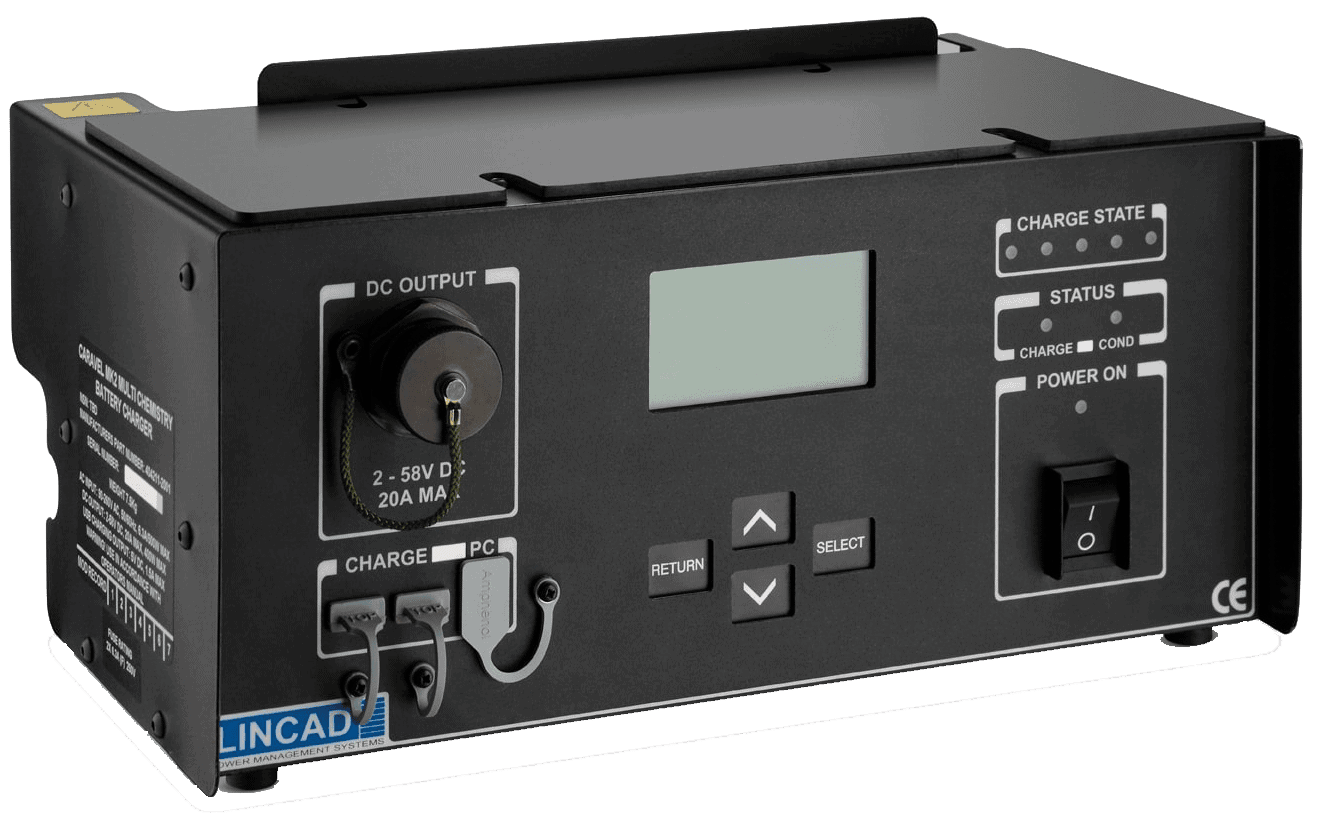

Caravel Mk2 Charger
The Caravel Mk2 Charger is Lincad’s enhanced, cutting edge, multi-chemistry charger that brings together the latest developments in battery charging technology and design. Offering multi-chemistry charging of batteries from any original equipment manufacturer, it is now possible to bring an entire battery fleet under the management umbrella of a single charging unit. Designed with functionality to allow the discharge of any lithium-ion battery to 30% state of charge in line with the new IATA regulations, it becomes the default battery charger for anyone in the lithium-ion battery supply chain. With twin USB ports, it will also charge USB enabled devices such as smartphones and tablets.
Click here to view the Datasheet
