Not chemistry specific

The Fleet 2812 is a compact, lightweight 28V DC, 1200 W power supply designed to run from universal AC mains. Rugged and versatile, it satisfies front line military operating requirements for equipment requiring a 28V DC input.

Originally designed for the BPMS Mk2 which has its own internal charger, the Fleet 2812 does not have the current control for charging a battery directly.

  • Part No.: 404292-2001
  • NSN: 6130-99-845-7772
  • Battery Chemistry: Not chemistry specific
  • Dimensions: 103mm × 183mm × 407mm

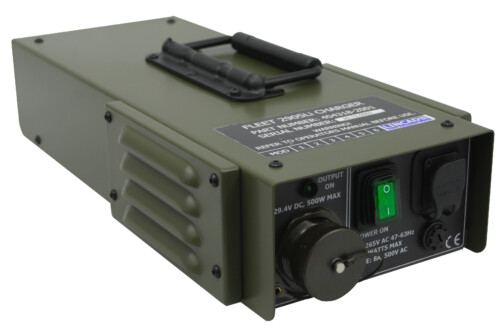

A compact, lightweight 29V DC, 500W lithium-ion battery charger, designed to run from a universal AC mains supply. The charger is designed to be rugged and versatile enough to satisfy frontline military operating requirements.

Can be used for a wide range of 24V lithium-ion battery types. It can be supplied with a range of input cable lengths and BIAs, allowing it to be easily adapted for various operating scenarios and charging applications.

  • Part No.: 404318-2001
  • NSN: 6130-99-472-1478
  • Battery Chemistry: Not chemistry specific

The Caravel Mk2 is Lincad’s first multi-chemistry charger and incorporates the very latest in battery charger technology and design. It offers charging of lithium-ion (Li-ion) and other battery types from any original equipment manufacturer via battery interface adaptors (BIAs).

It features a transport mode to prepare Li-ion batteries to less than 30% state of charge for air transport in line with IATA regulations, and a storage mode to prepare Li-ion batteries to 50% state of charge for long-term storage. It also includes twin USB ports for charging mobile devices.

  • Part No.: 404211-2001
  • NSN: 6130-99-843-6297
  • Battery Chemistry: Not chemistry specific
  • Dimensions: 172mm × 345mm × 210mm

The Armada is a six-channel multi-chemistry charger/conditioner designed for the state of charge management of lithium-ion (Li-ion) and other battery types from any original equipment manufacturer. It is an efficient fleet management tool for anyone involved in the transport and storage of batteries.

Designed for absolute simplicity of operation, each channel features a transport mode to prepare Li-ion batteries to less than 30% state of charge for air transport in line with IATA regulations, and a storage mode to prepare Li-ion batteries to 50% state of charge for long-term storage. State of charge information for each channel is provided by an LED indicator display.

  • Part No.: 404255-2001-2
  • NSN: 6130-99-845-5999
  • Battery Chemistry: Not chemistry specific
  • Dimensions: 186mm × 445mm × 355mm

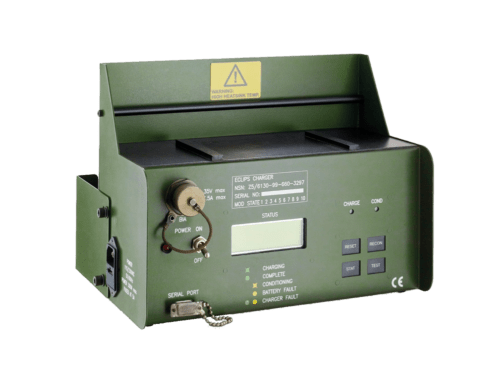

The Caravel is Lincad’s longest in-service charger, being developed for the first LIPS batteries in 2000, and is compatible with Lincad’s current range of LIPS products.

Whilst the Caravel remains in service, the Caravel Mk2 is recommended for users who wish to maintain a greater range of battery products.

  • Part No.: 40463
  • NSN: 6130-99-660-3297
  • Battery Chemistry: Not chemistry specific
  • Dimensions: 235mm × 320mm × 183mm

The Harvester is Lincad’s flexible solution to mobile power management for any situation where reliability, low weight and ease of use are critical. Harvesting energy from any DC input such as solar panels, a vehicle or batteries, it allows the charging of LIPS and other battery types.

When access to conventional charging methods is unavailable, the Harvester provides an alternative option for maintaining urgent power requirements. It also includes a USB port for charging mobile devices.

  • Part No.: 404217-2001
  • Battery Chemistry: Not chemistry specific
  • Dimensions: 67mm × 75mm × 0mm

The Solar Charger charges a single LIPS 5, 10, 11, 12 or 15 battery using the DC input from solar panels.

Providing flexibility in the field when no AC or other DC source is available, it can offer reduced charge times with a charge current of up to 10A.

  • Part No.: 404203-2001
  • Battery Chemistry: Not chemistry specific

The Armada is a six-channel multi-chemistry charger/conditioner designed for the state of charge management of lithium-ion (Li-ion) and other battery types from any original equipment manufacturer. It is an efficient fleet management tool for anyone involved in the transport and storage of batteries.

Designed for absolute simplicity of operation, each channel features a transport mode to prepare Li-ion batteries to less than 30% state of charge for air transport in line with IATA regulations, and a storage mode to prepare Li-ion batteries to 50% state of charge for long-term storage. State of charge information for each channel is provided by an LED indicator display.

  • Part No.: 404255-2001-2
  • NSN: 6130-99-845-5999
  • Battery Chemistry: Not chemistry specific
  • Dimensions: 186mm × 445mm × 355mm
