Lincad produces a range of power management systems that provide regulated uninterrupted power for critical applications. These high power systems can be engineered to the highest mechanical and environmental specifications for use under extreme conditions.

wp0ade84ec_1a

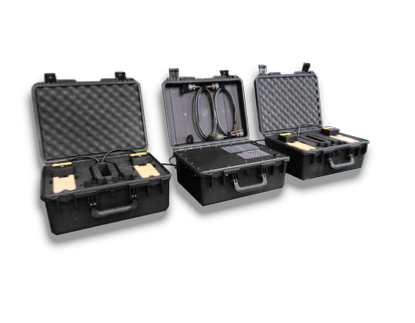

LIPS 10 UPS

The LIPS 10 UPS (uninterruptible power supply) system is an easily portable power management system which can be configured to use up to four LIPS 10 batteries to provide a regulated 24 V DC power supply of up to 92 Ah to a host system. Normally powered from an AC mains input, recharge of the LIPS 10 batteries is achieved via an integrated charger. The LIPS 10 UPS may also be used in a stand-alone configuration.

Voltage 24 V (Nom Output) NSN N/A
Capacity 95 Ah Capacity Gauge 5 LED
Energy Density N/A Battery Comms Optional
Weight 18 Kg (Charger) Dimensions 490-389-230 mm

Enquire about this product
BPMS_

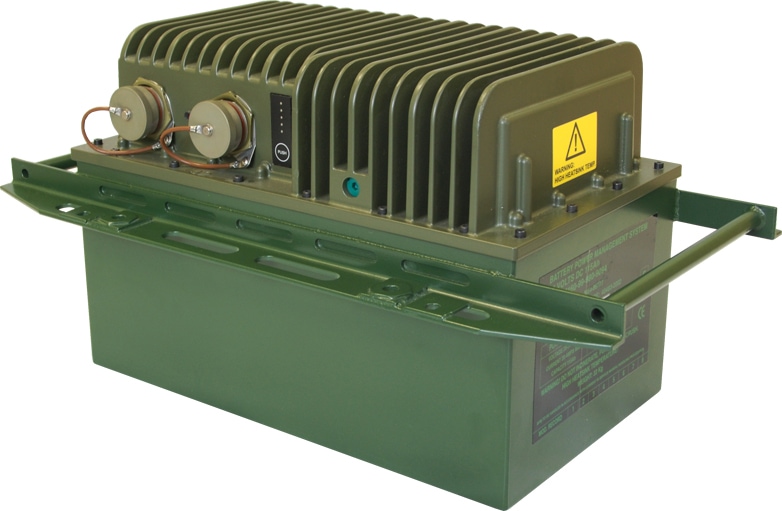

BPM

The BPM (battery power module) is a ruggedised UPS system that provides a regulated 24 V DC power supply of 115 Ah to a host system. Normally powered from an external DC input, recharge of the onboard batteries is achieved via an integrated charger. The BPM is engineered to the highest mechanical and environmental specifications and provides a robust and reliable power source for mobile and stationary placement systems. The BPM may also be used in a stand-alone battery configuration. It has been used to power LINAPS (Laser Inertial Artillery Pointing System).

Voltage 24 V (Nom) NSN 6130-99-878-9896
Capacity 115 Ah Capacty Gauge 5 LED
Energy Density 90 Wh/kg Battery Comms Wired Serial
Weight 31 Kg Dimensions 405x235x280 mm

Enquire about this product
wp0_wpefaa16f8

LIPS 7 and LIPS 8 PMS

The LIPS 7 and LIPS 8 PMS are high-powered versions of the LIPS 6 PMS for applications demanding a heavy supply current. The LIPS 7 and LIPS 8 PMS differ only in their operating software.

Voltage 24 V (Nom) NSN 6140-99-727-1050
Capacity 95 Ah Capacity Gauge 5 LED
Energy Density 103 Wh/kg Battery Comms Wired Serial
Weight 22 Kg Dimensions 505x223x165 mm

Enquire about this product
wp0_wp0ee202ad

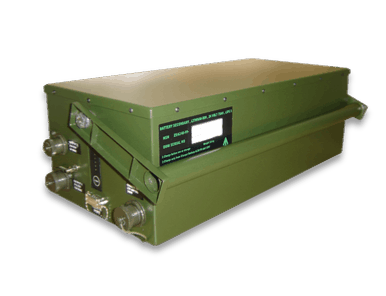

LIPS 6 PMS

The LIPS 6 PMS is a ruggedised 24 V DC, 95 Ah system designed for use in a deployed environment. Engineered to the highest mechanical and environmental specifications, it provides a robust and reliable power source for mobile and stationary placement systems. The LIPS 6 PMS may be recharged using the standard Caravel Charger or may be configured for use as a rechargeable power supply in a UPS system.

Voltage 24 V (Nom) NSN 6130-99-834-3626
Capacity 95 Ah Capacity Gauge 5 LED
Energy Density 103 Wh/kg Battery Comms Wired Serial
Weight 22 Kg Dimensions 505x223x165 mm

Enquire about this product
